Project Description

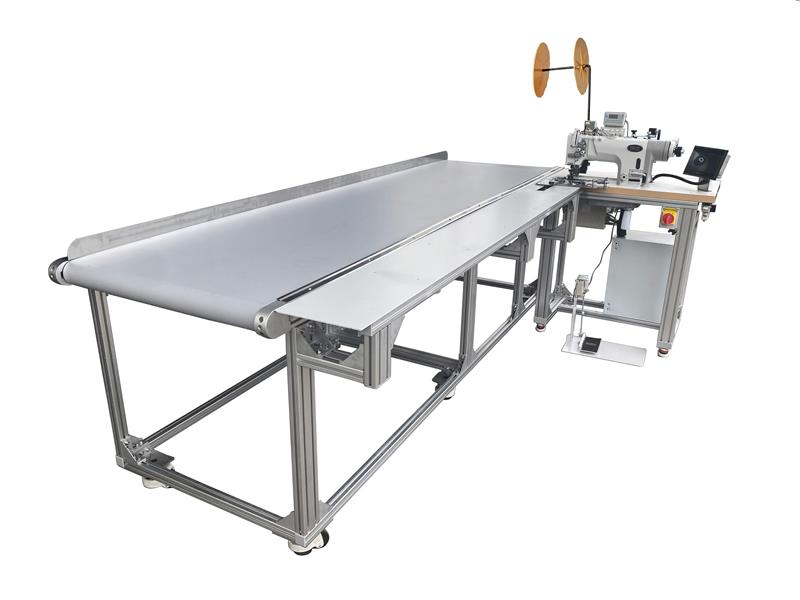

S-CT23E-L02 Double Needle Curtain Hemming and Tape Attaching with Smart Interchangeable Conveyor Belt Workstation
| Technical Parameter | |
|---|---|
| Sewing Head | Sakura-Stitch S-872D-04 |
| Conveyor Length | 3000 mm |
| Conveyor Height | 900 mm (can be customized) |
| Equipment Footprint | 3000 mm x 1860 mm |
| Packaging Dimension | Plywood 3160mm x 1360mm x 1160mm Plywood 1160mm x 710mm x 1510 mm |
| Gross Weight | 210KG 95KG |
A new compact design of stand up operation using a synchronous conveyor belt system used for curtain ripple fold tape attachment process that is suitable for any factory or workroom that has limited space.
This sewing head can be interchangeable with any other our sewing head for different functions:
– L01 Sewing Head = Curtain Hemming
– B05 / B06 Sewing Head = Curtain Joining
– C33 Sewing Head = Curtain Buckram Tape Attaching
– A01 Sewing Head = Curtain Blind Hemming
